Relyum Industrial |
|
|
|
|
| |
RelyUm Industrial delivers field-proven TSN, redundancy, and validation equipment
for smart grids and critical infrastructure.
FPGA-based switches, endpoints, and validation tools support IEC 61850 testing,
traffic capture, and time stamping.
On-the-fly firmware upgrades enable new features and standards compliance
without hardware redesign.
Long FPGA EOL (25 years) and open-standards compliance guarantee
interoperability and lifecycle stability.
Advanced cybersecurity features protect critical data streams in harsh industrial
environments.
|
|
| |
| |
HSR/PRP/PTP RedBox Switches
RelyUm redbox switch products are a new concept of intelligent devices that
integrates advanced field-proven technology for non-packet-loss redundant
Ethernet, sub-microsecond synchronization and cybersecurity.
These devices are able to provide the whole LAN with redundant networks
(PRP, HSR), connecting PRP and HSR networks with each other, as well as
extending HSR rings via QuadBox operation.
|
|
|
|
|
| |
RELY-PCIe
|
|
| |
(HSR/PRP/PTP Redbox/DAN/Switch PCIe NIC)
|
|
| |
RELY-PCIe is a high-performance networking card designed for any PC or industrial
system with PCI Express slots. Combining hardware and software on a single board,
it enables advanced networking, synchronization, and security services for critical
applications. Its compatibility with full-height and low-profile slots makes it ideal for
retrofitting standard and compact systems alike.
|
|
| |
|
|
|
|
Features:
- Dual 100/1000BASE SFP ports for HSR/PRP redundancy
- Sub-microsecond IEEE 1588 PTP/NTP synchronization
- Supports Zero Packet Loss redundancy (HSR/PRP)
- Built-in secure web and CLI management interfaces
- Compatible with Linux, Windows, and real-time OSs
- Fanless, rugged design for industrial environments
|
|
| |
|
| |
| |
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
Testing and Validation tools
The digitisation of the electric sector and Smart Grids enables advanced utility
management and protection/control in substations and generation plants.
HSR/PRP/PTP & IEC 61850 protocols deliver high-availability redundancy and
standardized communications for critical grid devices.
RelyUm Industrial testing & validation tools pack innovative, powerful, and flexible
features into a compact, rugged platform.
These solutions streamline processes, cut engineering time and costs, and boost
safety and reliability in smart grid deployments.
|
|
|
|
|
| |
RELY-REC
|
|
| |
(Time-Synchronized Ethernet Traffic Recorder)
|
|
| |
In mission-critical systems, precise network traffic analysis is vital for diagnostics,
compliance, and incident investigation. The RELY-REC recorder is engineered for
capturing and timestamping both conventional and high-availability Ethernet traffic
(HSR/PRP), aligning all data to a common time reference (PTP/NTP) for accurate
correlation and forensic evaluation.
|
|
| |
|
|
|
|
|
|
| |
|
Features:
- Continuous packet capture in PCAP format for use with Wireshark
- Time-synchronized recording via PTP or NTP
- Supports HSR and PRP high-availability Ethernet protocols
- 256GB SSD for local data storage
- HTTPS and SSH access for monitoring and configuration
- Rugged, 24/7 industrial-grade design
|
| |
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
TSN Switches and Endpoint Switches
Time-Sensitive Networking (TSN) merges hard real-time, soft real-time, and
best-effort Ethernet traffic on a single, deterministic network.
It guarantees timely message delivery and seamless device interoperability for
critical applications.
TSN is the future reference technology across automotive, railway, industrial
automation, aerospace, and defense sectors.
Leveraging SOC-E's expertise, RelyUm Industrial delivers a complete range of TSN
switches and endpoint switches for reliable, real-time Ethernet networks.
|
|
|
|
|
| |
RELY-TSN-PCIe
|
|
| |
(Time-Sensitive Networking Endpoint Bridge PCIe NIC)
|
|
| |
RELY-TSN-PCIe is a next-generation PCIe TSN endpoint bridge NIC, designed to bring
determinism and real-time performance to Ethernet networks. It features two
multimedia Gigabit Ethernet ports and acts as both a TSN Endpoint and a Bridge,
streamlining integration into industrial and real-time applications. Powered by a
Xilinx UltraScale+ FPGA, this card delivers robust performance, security, and
adaptability to evolving TSN standards.
|
|
| |
|
|
|
|
Features:
- Adds TSN functionality to COTS systems for deterministic networking
- FPGA-based, upgradeable platform with SOC-E's proven TSN IP
- "Zero-Packet Loss" reliability using Frame Replication and Elimination (FRER)
- Centralized TSN configuration via Qcc and YANG model support
- Easy remote operation via HTTPS or SSH CLI
- Wide OS driver support: Linux, Windows, RTOS
|
|
| |
|
| |
| |
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
RELY-TSN4
|
|
| |
(4-port Time-Sensitive Networking Switch)
|
|
| |
The RELY-TSN4 is a compact, high-performance 4-port Time-Sensitive Networking
(TSN) switch designed to deliver deterministic Ethernet communication for critical
applications across industries such as aerospace, automotive, railway, and
industrial automation.
|
|
| |
|
|
|
|
|
|
| |
|
Key Features:
- 4x TSN 100/1000BASE-SFP Ports: Supports a wide range of TSN standards,
enabling flexible network configurations.
- FPGA-Based Architecture: Powered by SOC-E's in-house designed technology,
allowing for easy upgrades as TSN standards evolve.
- Zero-Packet Loss Redundancy: Utilizes TSN Frame Replication and Elimination for
Reliability (FRER) combined with Multiple Spanning Tree Protocol (MSTP) to ensure
seamless data transmission.
- User-Friendly Management: Simplified management and monitoring via a user-friendly
HTTPS web interface or SSH-accessible CLI. Compliant with IEEE 802.1Qcc
for centralized configuration through YANG model configuration files.
- Comprehensive TSN Ecosystem: Offered in conjunction with SOC-E's TSN
expertise to deploy turnkey projects.
|
| |
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
RELY-10TSN20
|
|
| |
(20-port 1G/10G Time-Sensitive Networking Switch)
|
|
| |
RELY-10TSN20 is a rugged, FPGA-powered 20-port Time-Sensitive Networking (TSN)
switch designed for seamless integration of real-time and standard traffic. It
features 4x 10G SFP and 16x 1G copper ports with full TSN support, enabling precise
synchronization, low-latency communication, and zero-packet-loss reliability
across industrial and mission-critical applications.
|
|
| |
|
|
|
|
Key Features:
- 4x 10GBASE-SFP + 16x 10/100/1000BASE-T TSN ports
- Supports TSN standards: IEEE 802.1AS, Qbv, Qcc, Qci, CB, and more
- FPGA-based with upgradable architecture (Xilinx UltraScale+ MPSoC)
- Redundancy via Frame Replication and Elimination (FRER)
- Easy management via HTTPS/SSH, YANG/Qcc model suppor
- Enhanced security: 802.1X, RADIUS, port mirroring, SSH, RBAC
|
|
| |
|
| |
| |
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|

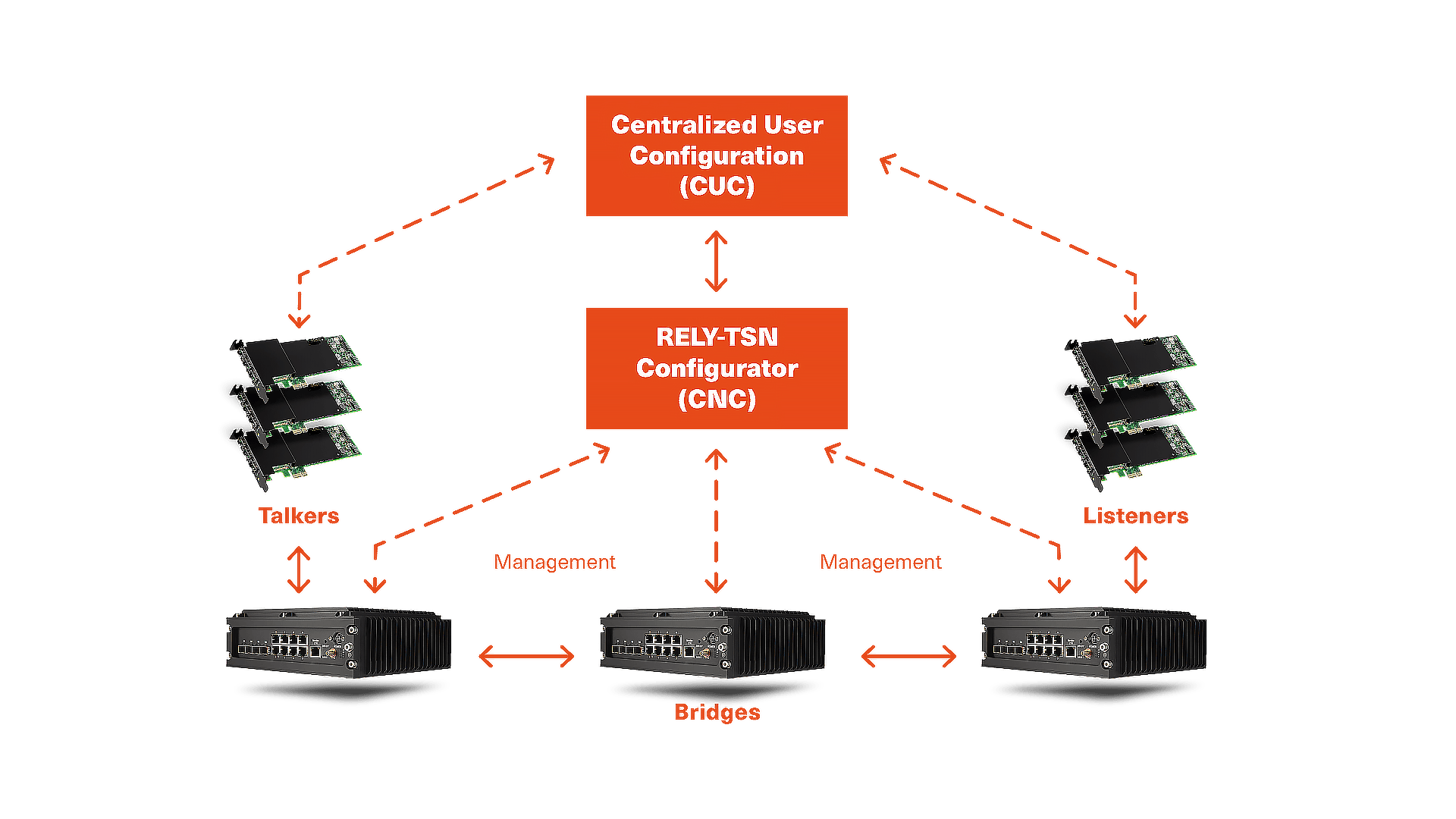

RELY-TSN.Configurator
|
|
|
|
|
| |
The RELY-TSN.Configurator is a comprehensive Time-Sensitive Networking (TSN)
modeling and configuration tool developed by Relyum in collaboration with a
partner experienced in real-time communication architectures. It simplifies the
design and deployment of deterministic Ethernet networks by automating the
configuration of TSN devices, ensuring that latency constraints are met without
over-provisioning resources.
|
|
| |
|
|
|
| |
| |
|
Key Features:
- User-Friendly Interface: Employs a "push-button" approach to streamline and
expedite network configuration processes.
- Optimal Network Configuration: Generates precise configurations to prevent
resource over-provisioning, ensuring efficient network performance.
- Standards-Based Compatibility: Built on open standards, ensuring compatibility
with various TSN solutions available in the market.
- Proven Technology: Utilizes a mathematical foundation based on network
calculus, validated in the aeronautic sector.
- Comprehensive TSN Mechanism Support: Supports a wide range of TSN
standards, including IEEE 802.1AS, 802.1Qav, 802.1Qbv, 802.1Qci, and 802.1CB,
among others.
- Flexible Export Options: Allows exporting configurations in XML-YANG, Excel, and
CSV formats, facilitating integration with various systems.
- Netconf Protocol Support: Enables seamless integration with Relyum TSN devices
and other TSN devices through the Netconf protocol.
- Licensing Models: Offers both single-computer single-login and floating license
options, including a perpetual license, 12 months of support and maintenance, and
initial training.
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
TSN Testing and Validation tools
Time-Sensitive Networking (TSN) unites hard real-time, soft real-time, and best-effort
Ethernet traffic for deterministic, reliable communication.
TAs TSN adoption grows in automotive, railway, industrial automation, aerospace, and
defense, pre-deployment validation is essential.
RelyUm Industrial TSN Testing & Validation tools provide traffic capture,
timestamping, and comprehensive performance metrics.
With emulation, diagnostics, and protocol compliance checks, these tools ensure
TSN network is fully validated during the process of implementing this technology in
their systems.
|
|
| |
|
|
| |
RELY-TSN-LAB
|
|
| |
(Time-Sensitive Networking Testing Tool)
|
|
|
RELY-TSN-LAB is an intelligent, FPGA-based TSN network analyzer designed to
validate and test real-time Ethernet networks. It offers high-precision latency and
bandwidth measurements, stress testing with error injections, and sub-microsecond time
synchronization-making it ideal for lab simulations and
validation of TSN deployments.
Key Features:
- Nanosecond-accurate latency metering
- IEEE 802.1AS synchronization with dedicated sync port
- Error injection on selected frames (FCS/CRC)
- Custom traffic filtering and bandwidth analysis
- Easy configuration via HTTPS or SSH
- Rugged fanless design for 24/7 operation
|
|
| |
|
| |
| |
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
RelyUm Rugged |
|
|
|
|
| |
RelyUm Rugged is SOC-E's product line for rugged military end devices, designed for
Aerospace and Defence applications.
|
|
| |
|
|
|
| |
MIL-TSN /
MIL-10TSN
|
|
|
|
|
| |
The MIL-TSN and MIL-10TSN are rugged, military-grade Time-Sensitive Networking (TSN)
switches engineered for demanding defence and aerospace environments. While MIL-TSN
supports up to 1G ports, MIL-10TSN extends functionality with 10G capability. Built with a
reconfigurable MPSoC platform, these switches combine deterministic Ethernet
performance, zero-packet-loss redundancy, and robust security in a MIL-STD-810G
certified enclosure.
|
|
| |
|
|
|
|
|
|
| |
|
Key Features:
- Up to 26 configurable TSN ports (1G/10G, copper and fiber)
- IEEE 802.1 TSN compliance (TAS, FRER, CBS, etc.)
- Sub-microsecond time synchronization (IEEE 802.1AS, optional IRIG-B, PPS)
- Advanced Layer 2 switching with VLAN, QoS, IGMP, and MSTP
- Cybersecurity features: MACsec, IEEE 802.1X, firewall/VPN (optional), TPM 2.0
- Edge-computing support and DDS/MQTT protocol compatibility
- MIL-STD-810G, MIL-STD-704/1275E power supply compliance
|
| |
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
OEM COTS & M-COTS |
|
| |
| |
| |
SOC-E offers OEM and M-COTS versions of Relyum rugged products to enable local
integrators to build custom rugged systems with reduced time-to-market.
By removing the enclosure and power supply, these versions offer greater design flexibility
while maintaining full hardware and firmware capabilities
The FPGA-based platform supports multiple firmware images and customizable port
configurations. M-COTS enables both physical and logical customization while meeting
strict EMI/EMC and military standards.
Ideal for partners needing pre-qualified, mission-ready solutions that accelerate rugged
product development.
|
|
|
| |
|
|
| |
|
|
|
|
|
